Triple DVD drive
After doing a bit of measurement, I found out that you can squeeze three laptop DVD drives in the space of one 5&quart;" slot.

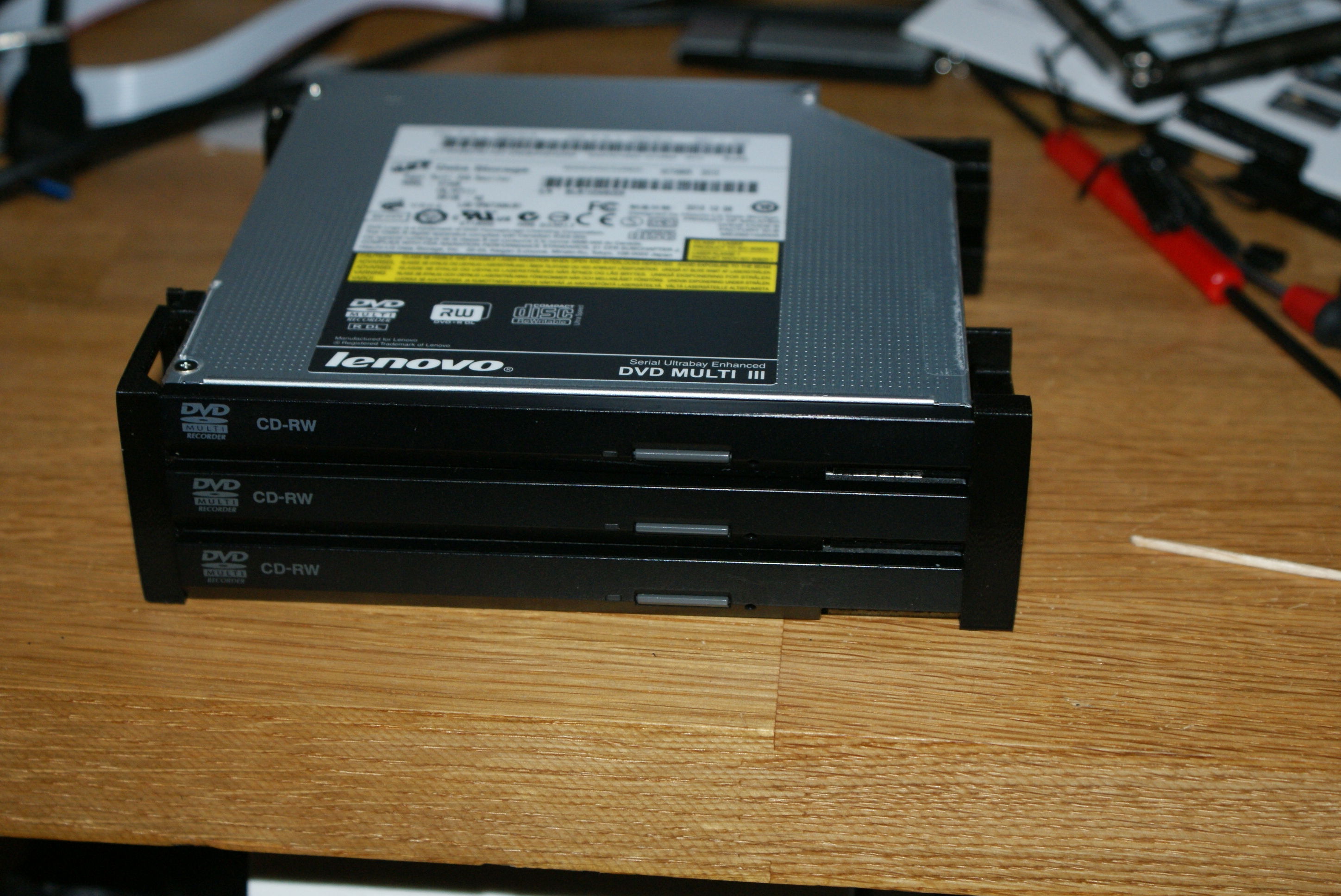

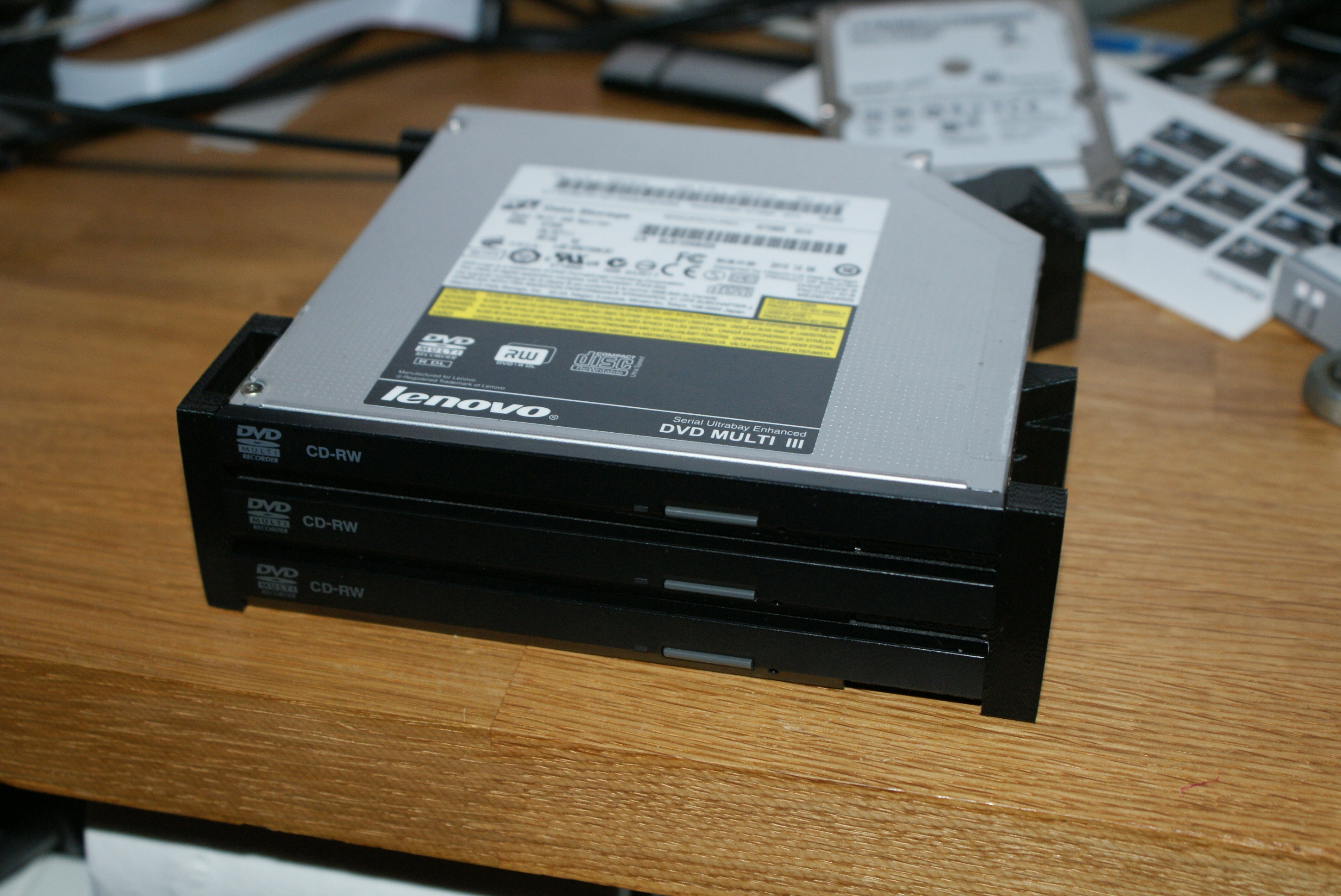

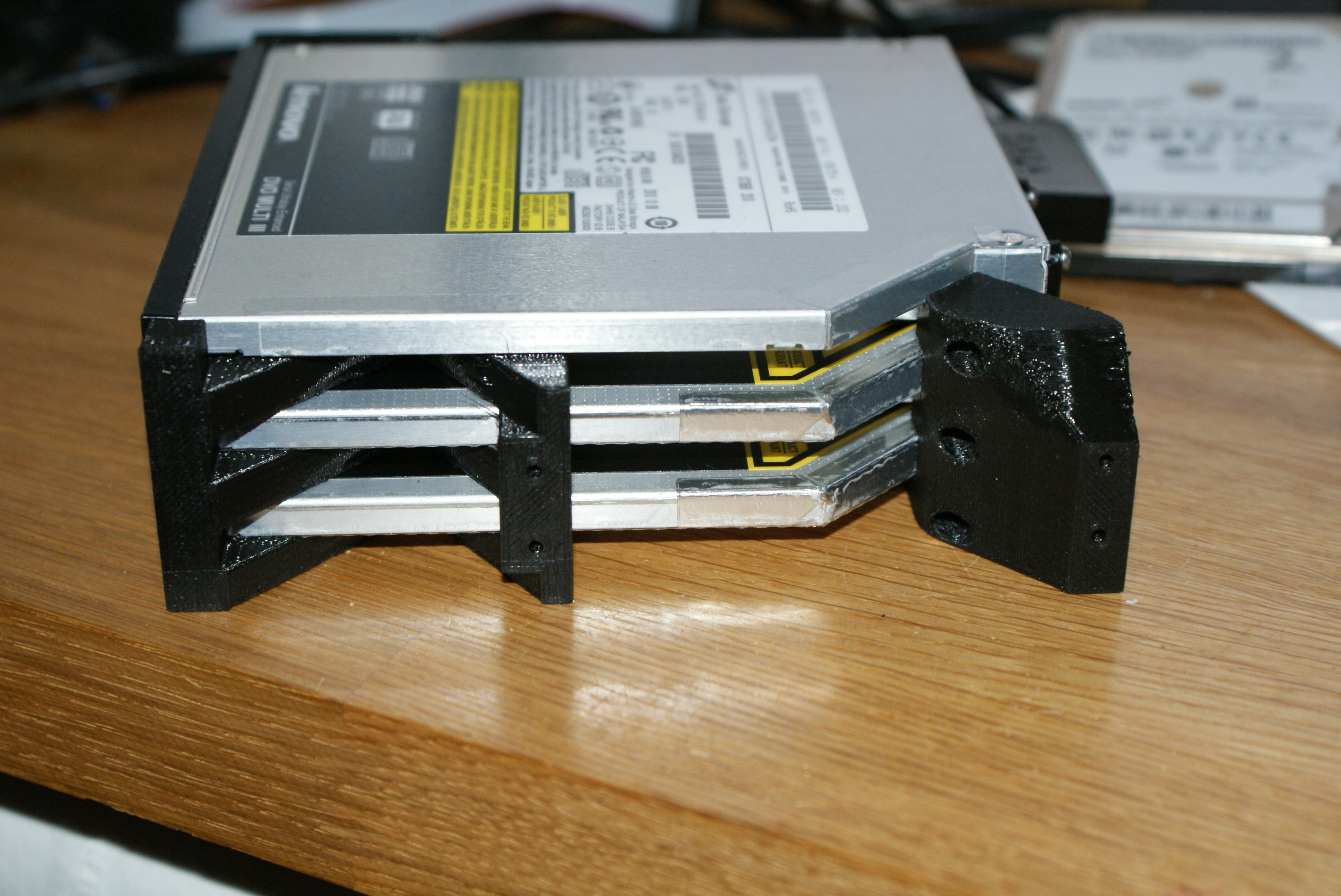

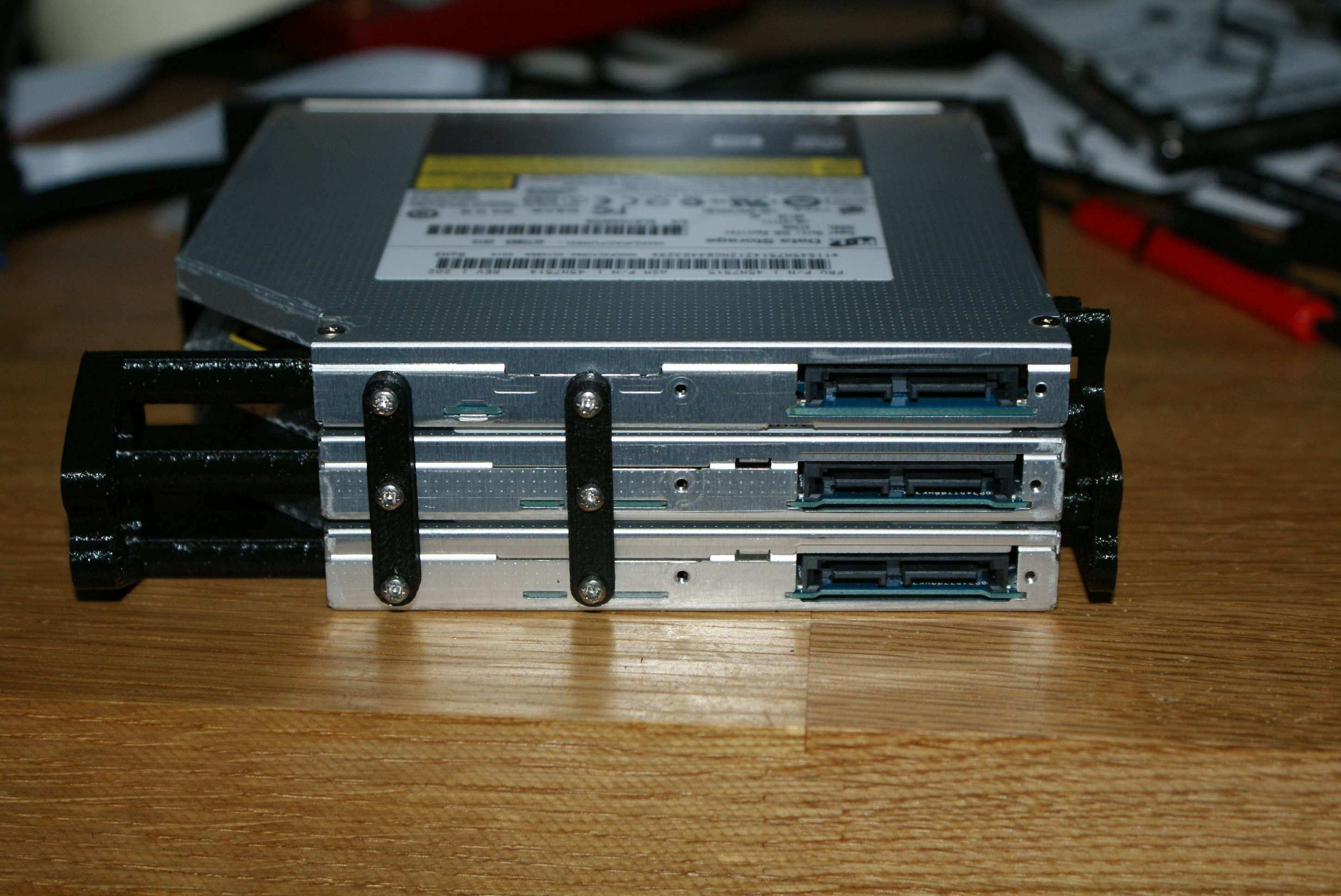

This is the prototype design. There's six pieces - four that hold the side screws, and two at the back:
![#](https://tribbeck.com/application/files/cache/thumbnails/c0d1ade97315f2fc9013e556c400be50.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/4bcdd23d652ed63113eee6008791a81f.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/e99579a665539f2a95b73681d7149bf1.jpg)

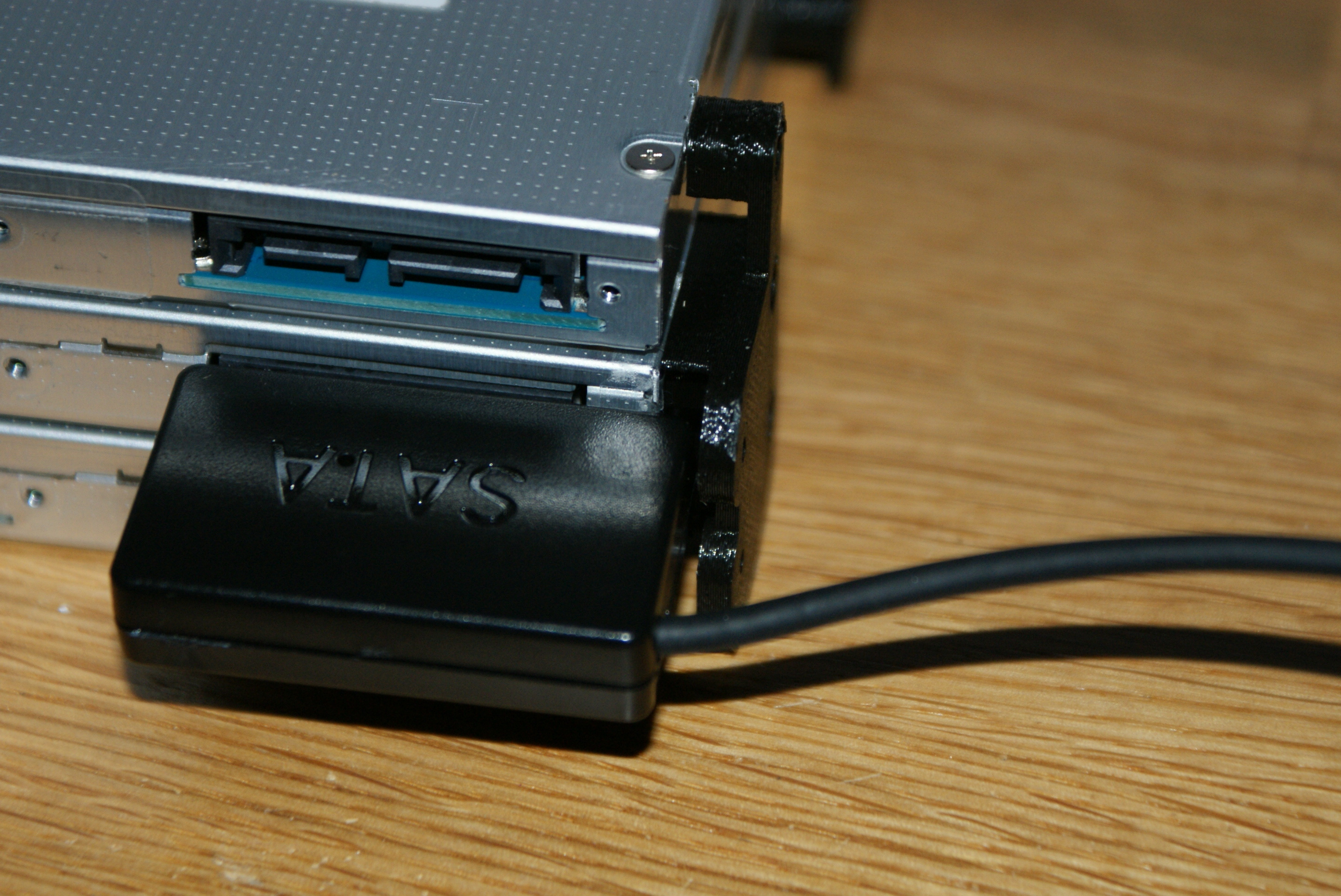

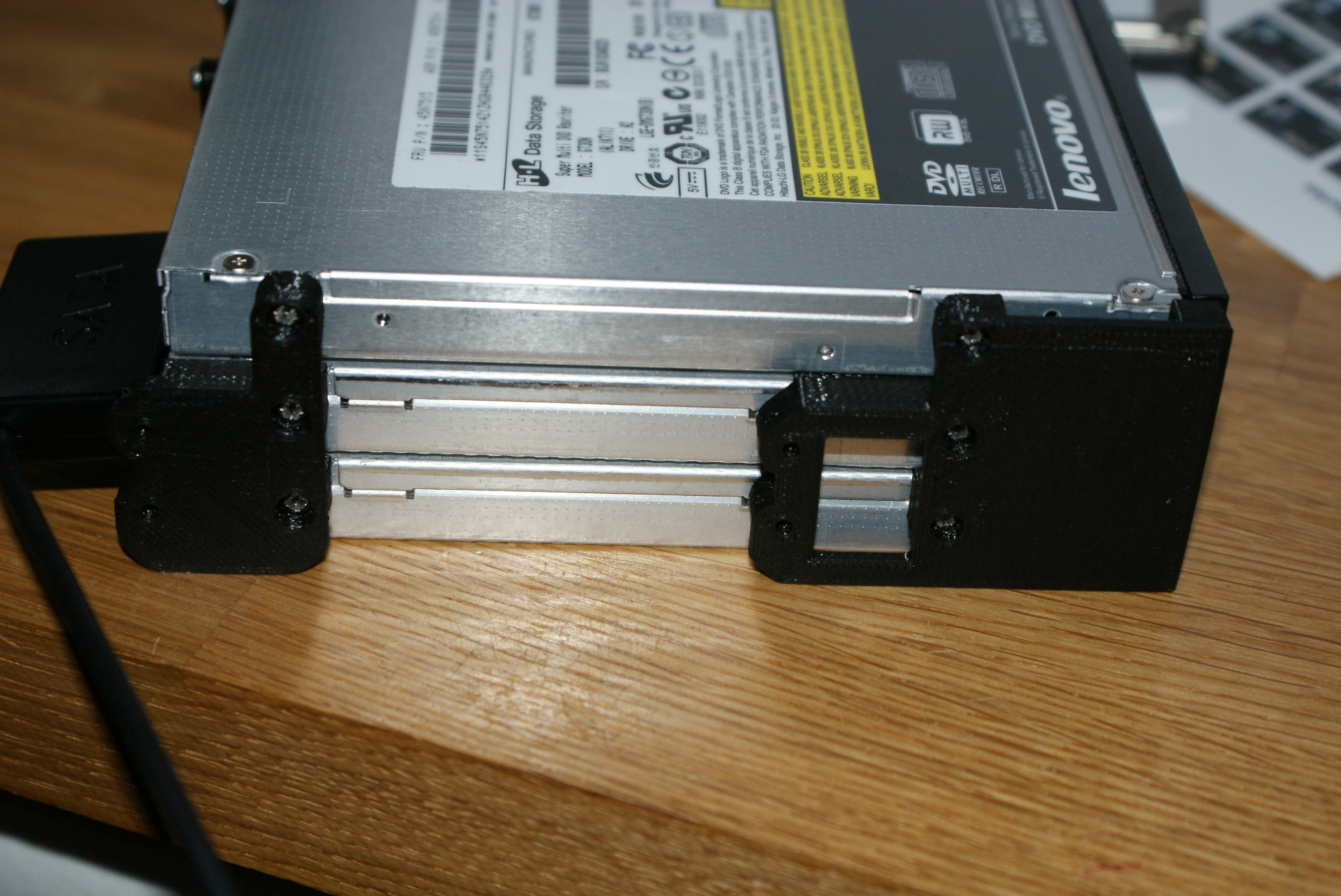

And there's space for the connector as well. I'll be using some spare internal USB ports for these (there's no need to use SATA):
![#](https://tribbeck.com/application/files/cache/thumbnails/0468081a9a1540228d88a002c07d52e4.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/409d9d1c9ed43037fcecb1497d1ac6eb.jpg)

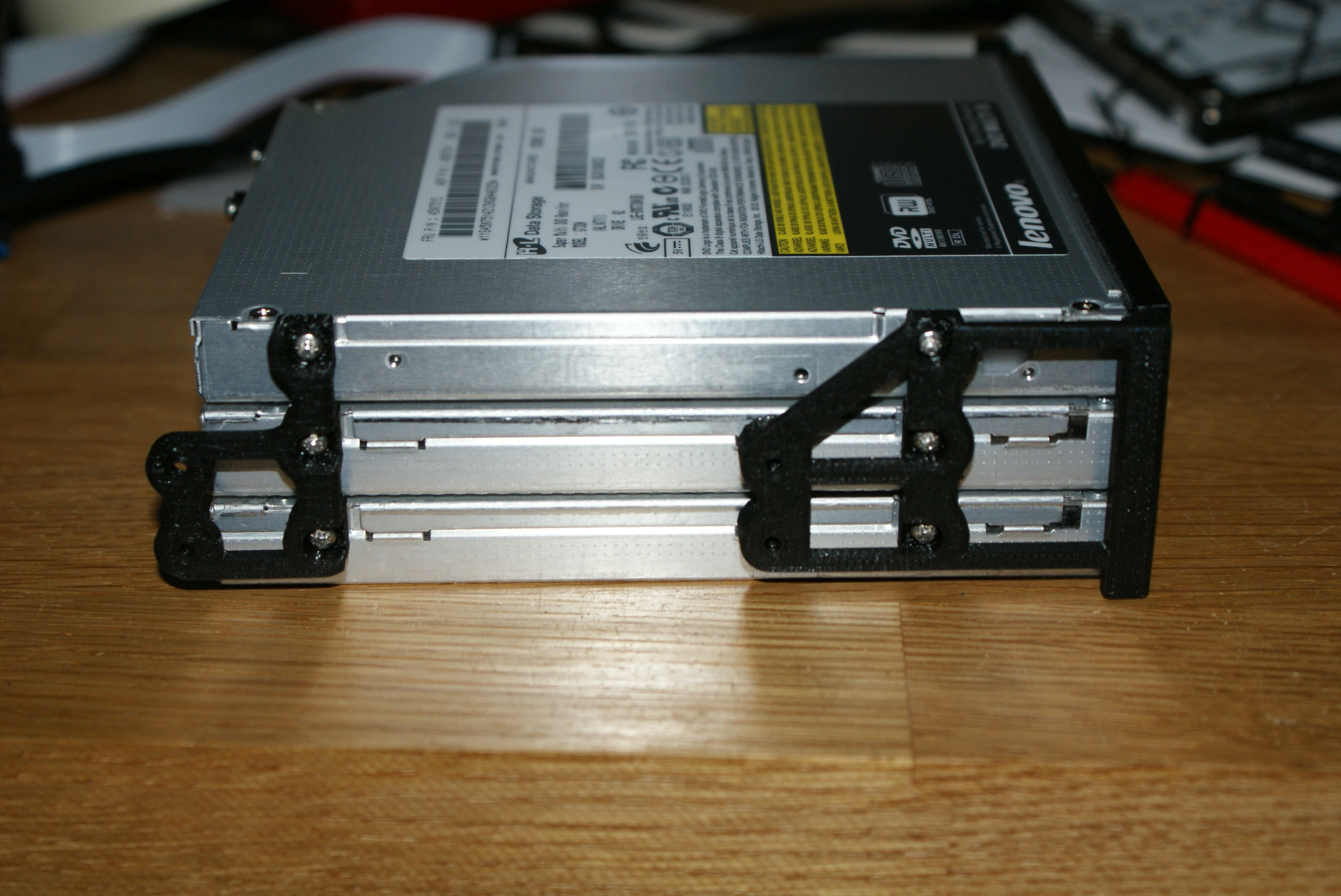

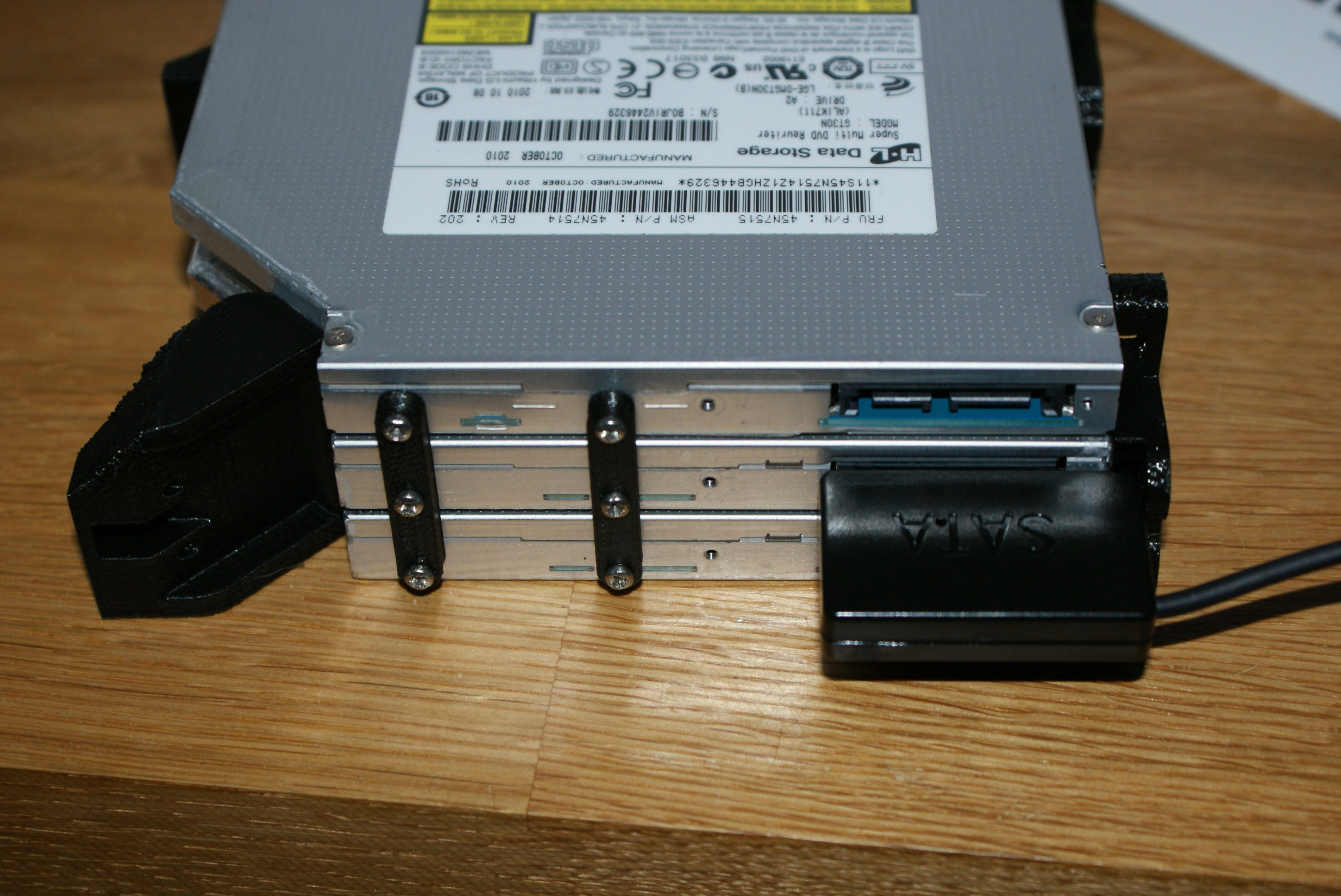

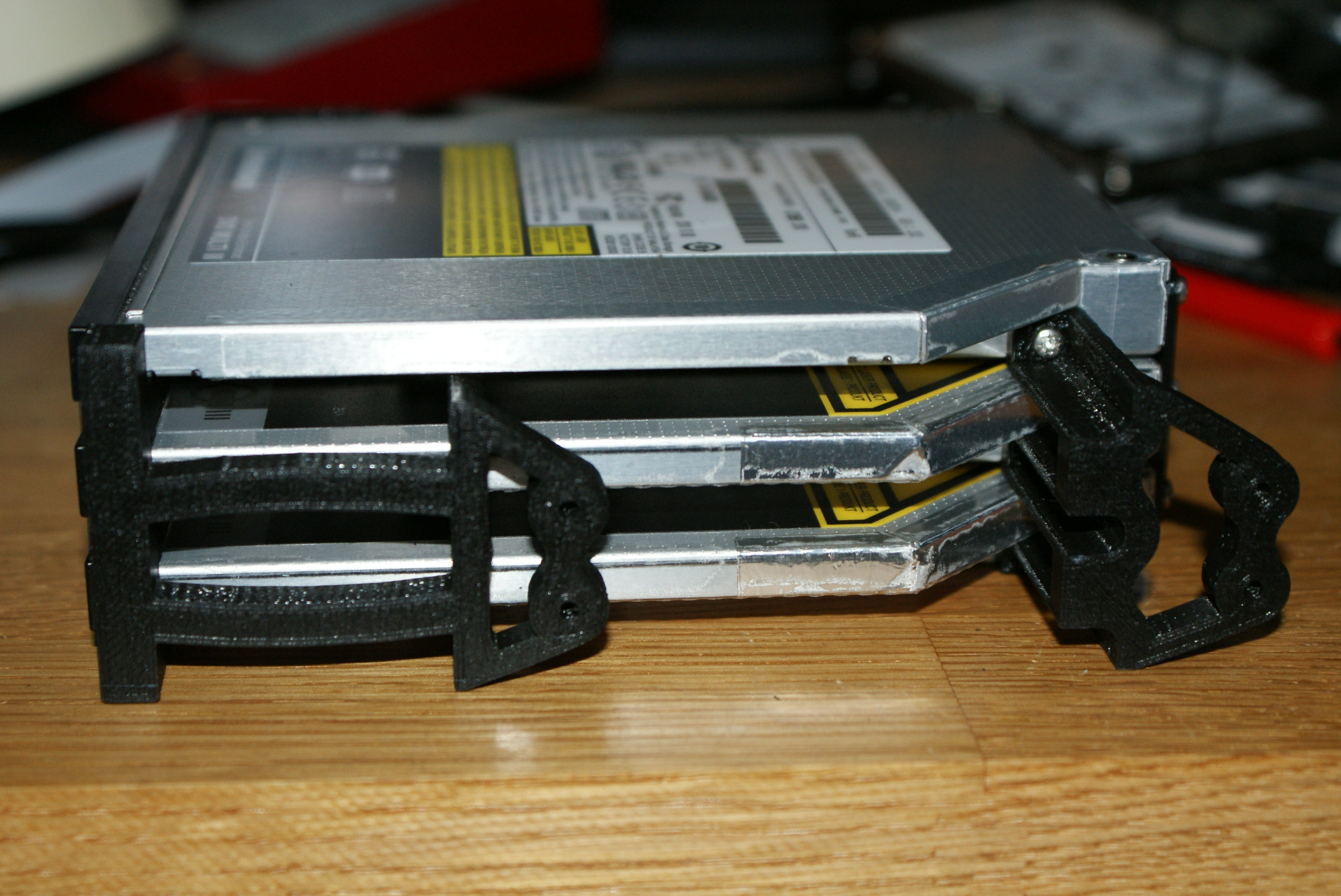

Some of the objects were a little big, and used more plastic than necessary, so I optimised the design a bit:
![#](https://tribbeck.com/application/files/cache/thumbnails/6b0410e035ed169f529a6d47035f8a35.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/927d86673dea0020a7e73acb9b03ca89.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/33b4aba18d63a2e79639474081608b74.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/6eb92adf2d052652709e77740e52b638.jpg)
I've not actually fitted this at the time of writing, but I'll do so when I get the chance!
