Martian - day 6

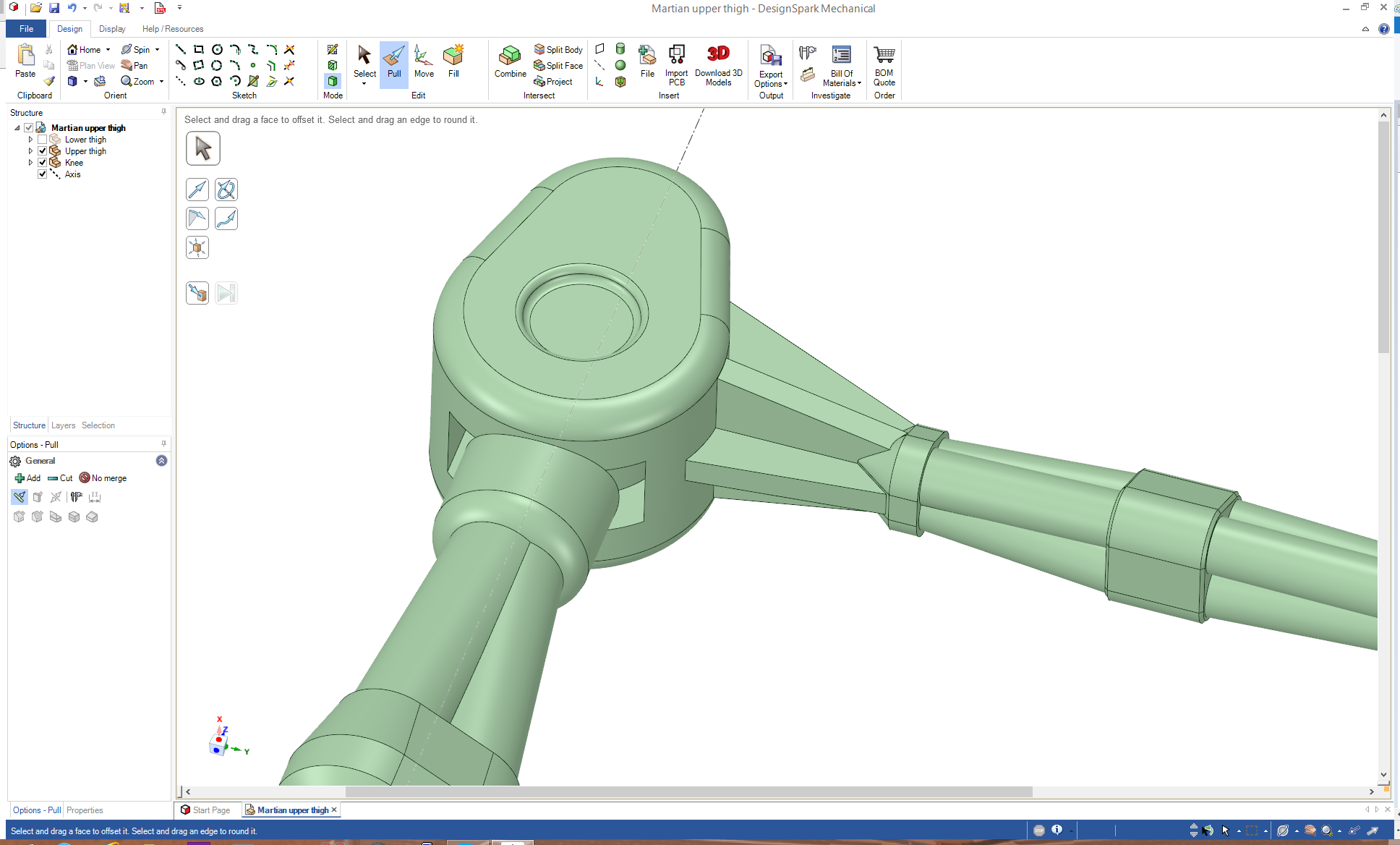

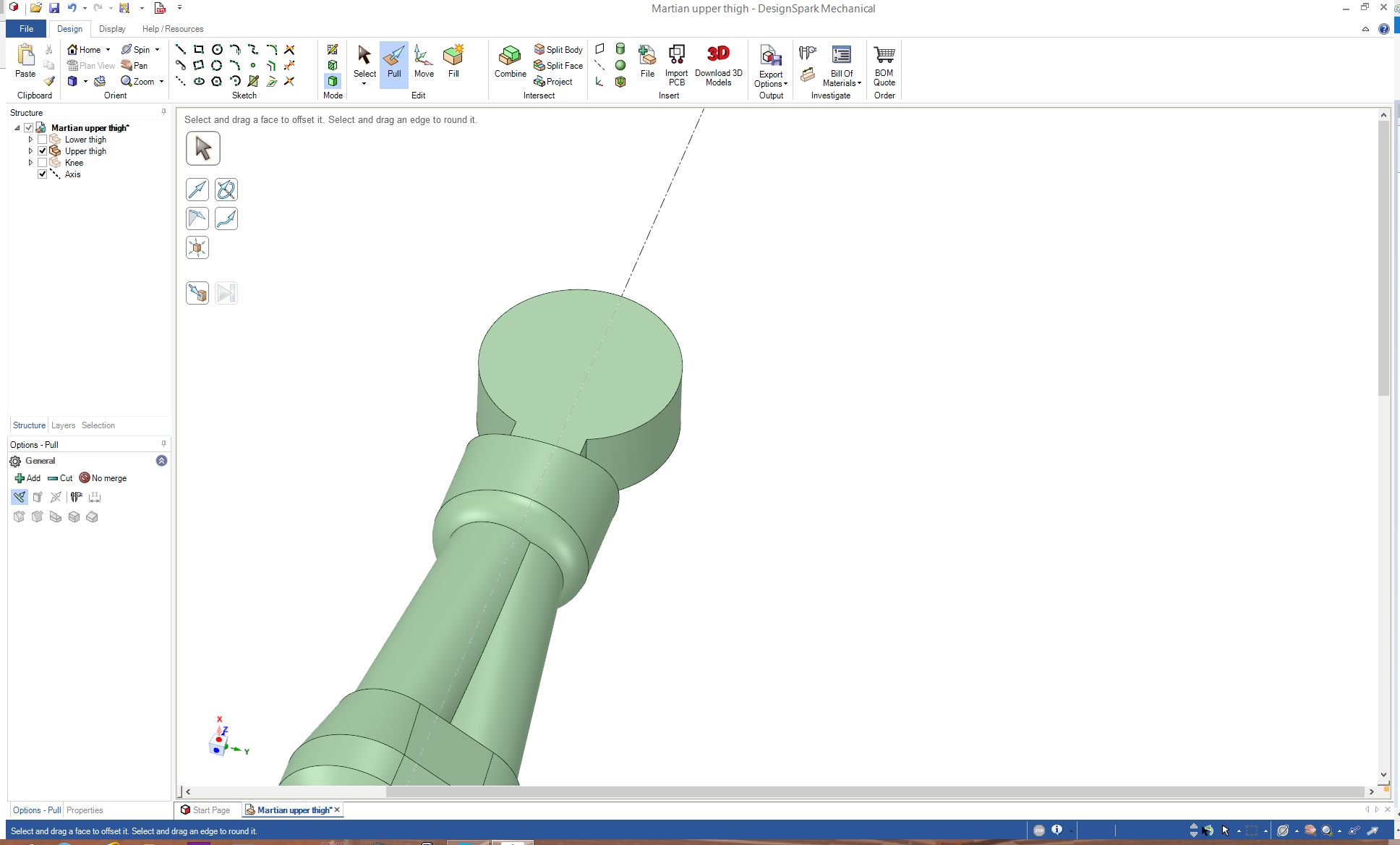

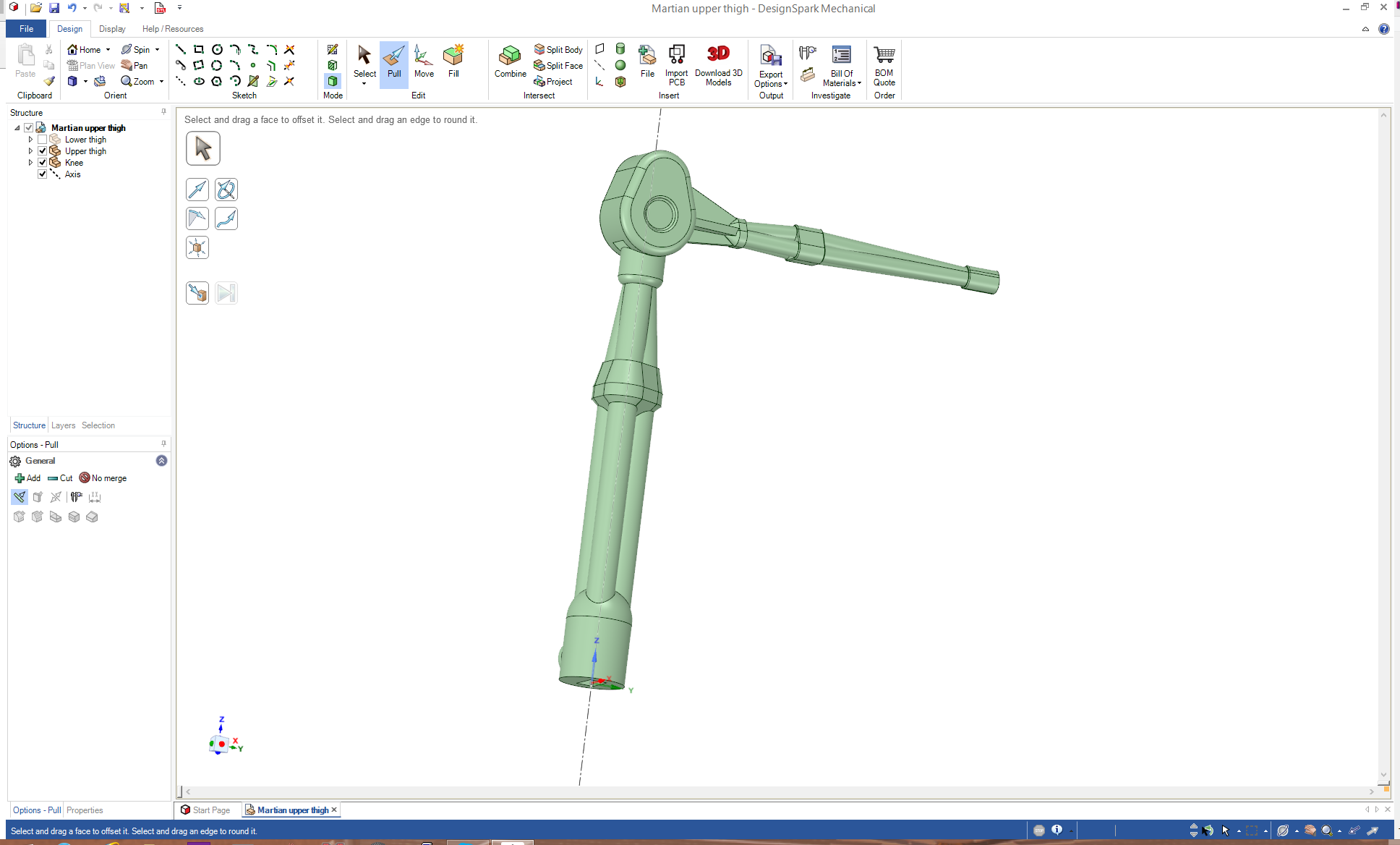

In a couple of cases, it probably would've been easier if I'd partially designed the next section before making the current one - in this case, I needed to modify the upper thigh (I'm still going to call it that for the time being), in order to make a nice joint for the knee (the bit above the knee I'm going to call the hip).
![#](https://tribbeck.com/application/files/cache/thumbnails/cca5fc148b2100e85838cfb5baa4767d.png)
![#](https://tribbeck.com/application/files/cache/thumbnails/c52ddd0754755379f93523132d32aeaa.png)
![#](https://tribbeck.com/application/files/cache/thumbnails/b0299bc25ec043448a599f1cdb51680b.png)
The joint won't be captive, as the weight of the martian body would be holding it down.

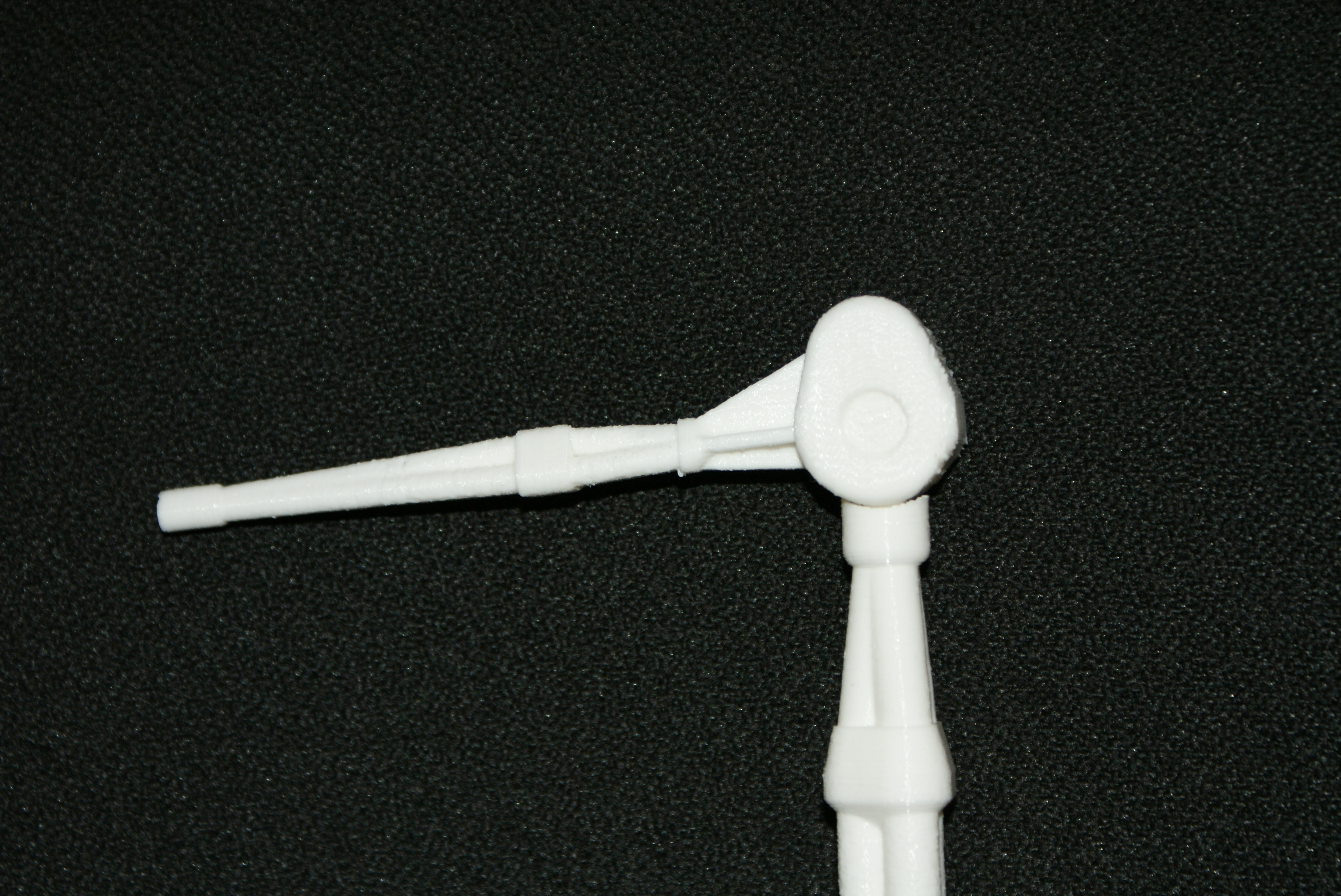

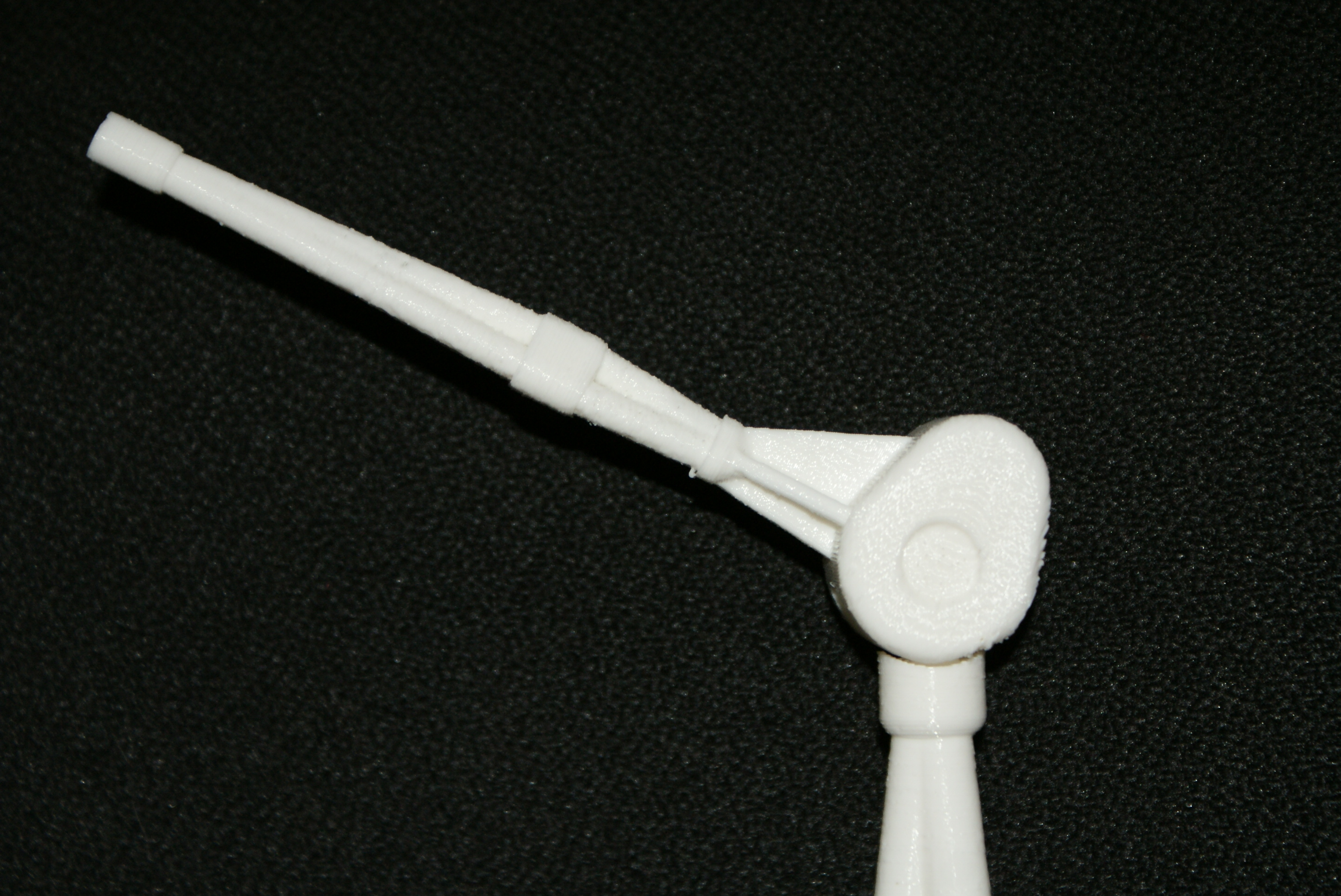

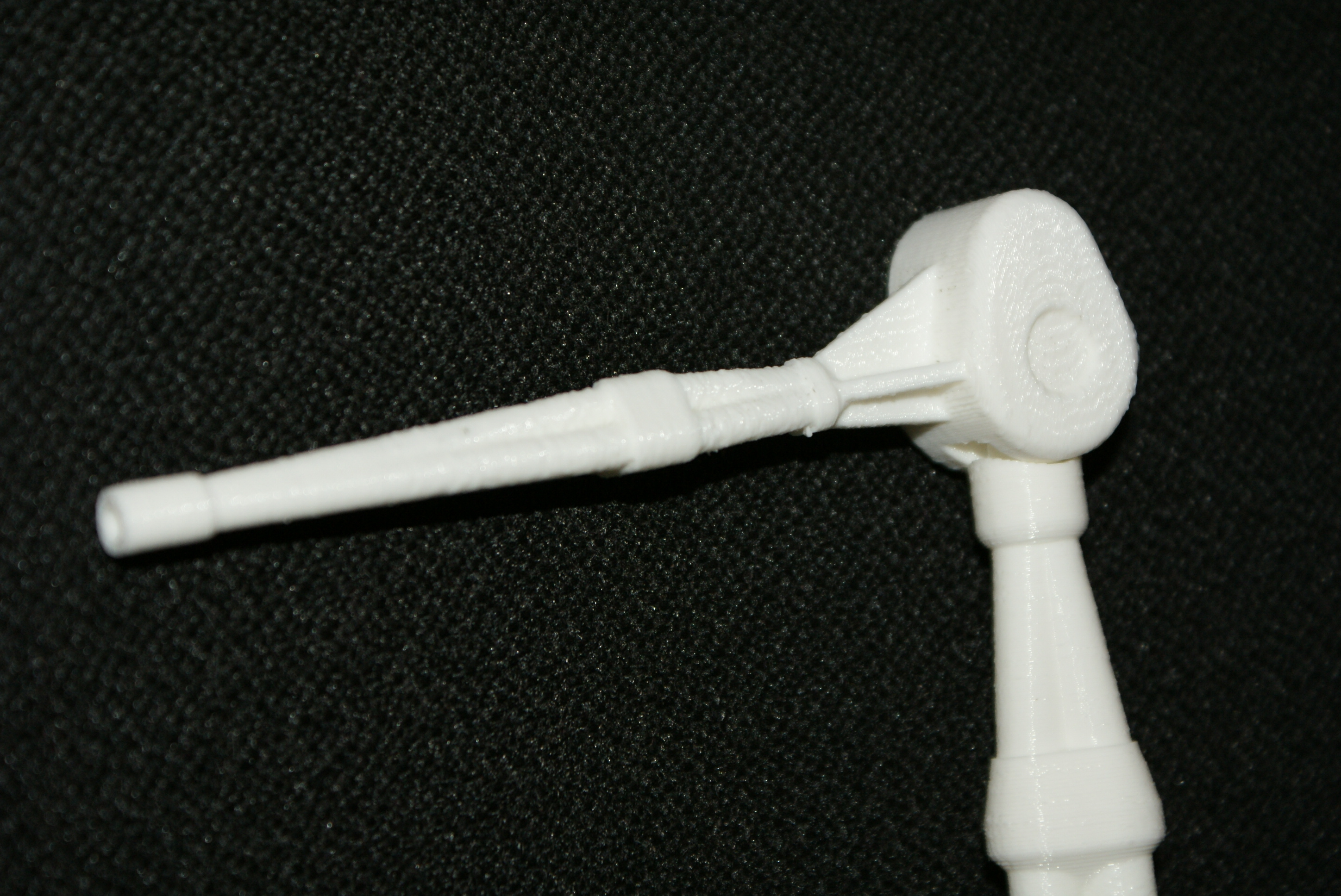

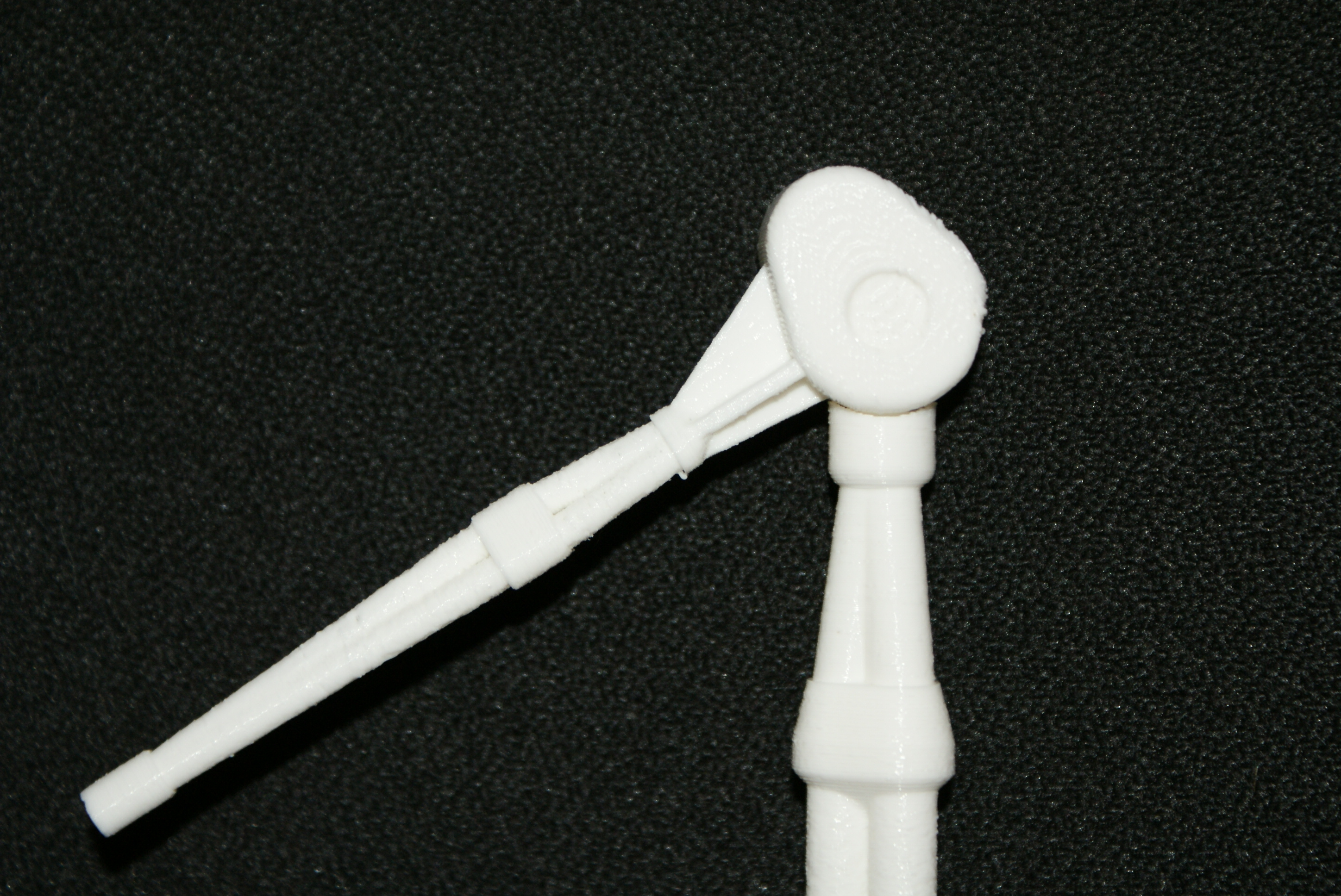

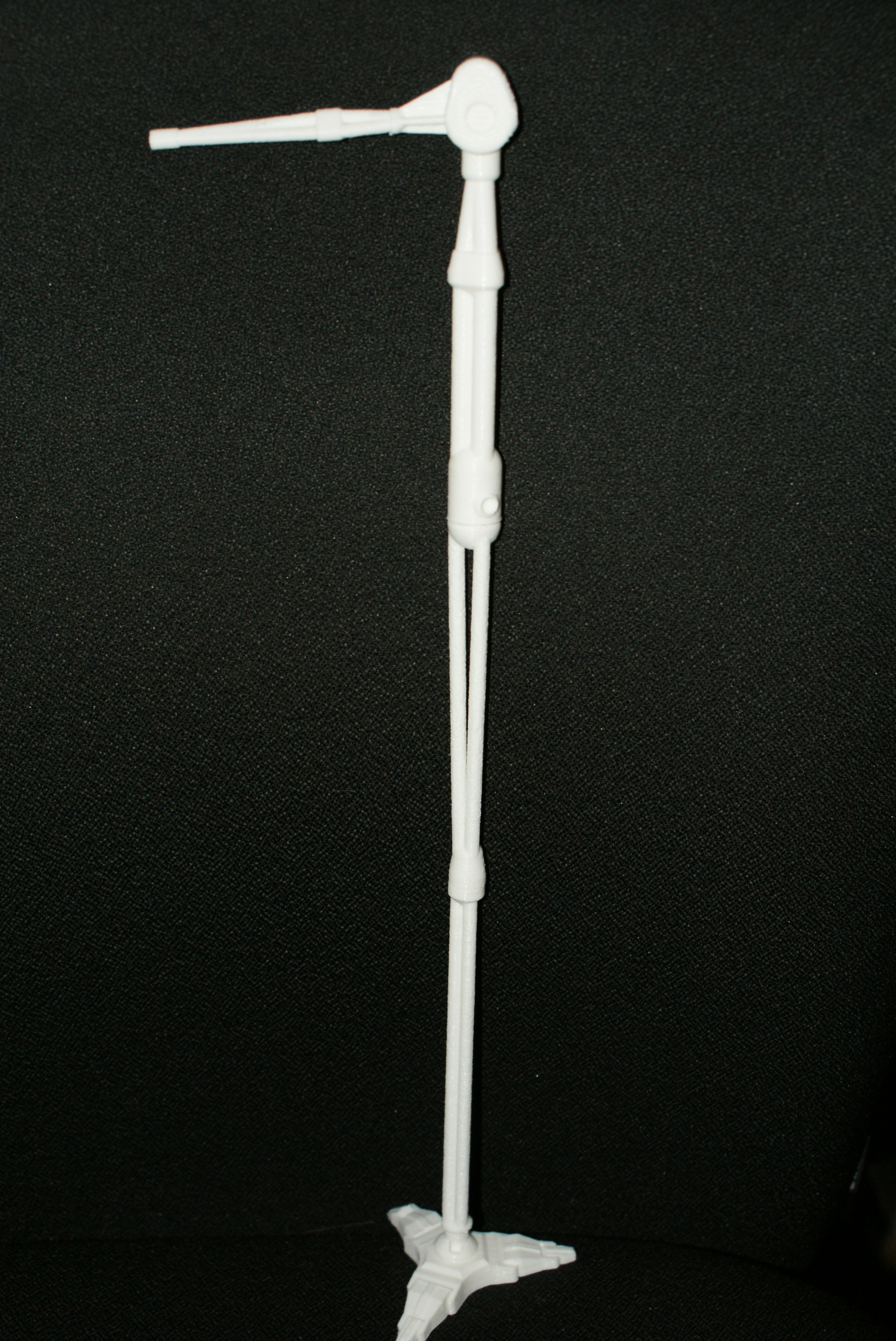

Because of the redesign of the upper thigh, I had to print both parts together - and the knee was a little bit tricky - mainly because I hadn't adjusted the filament temperature, and this white wanted it cooler than the red. The next set of prints should be a better temperature...
![#](https://tribbeck.com/application/files/cache/thumbnails/0e951659e227f77b91becdb76ae9ff73.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/86bc60067b497295d3aeed590ce48f2b.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/83bef2107f906b9cf3aaddb39c8c4fb7.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/dd376e09e6ce6350b3d73ff0bbc43b5d.jpg)
![#](https://tribbeck.com/application/files/cache/thumbnails/253502fb10b7ded385a618f6ec2e0f10.jpg)
Next stage will be the most complex - the body!
