The prototype

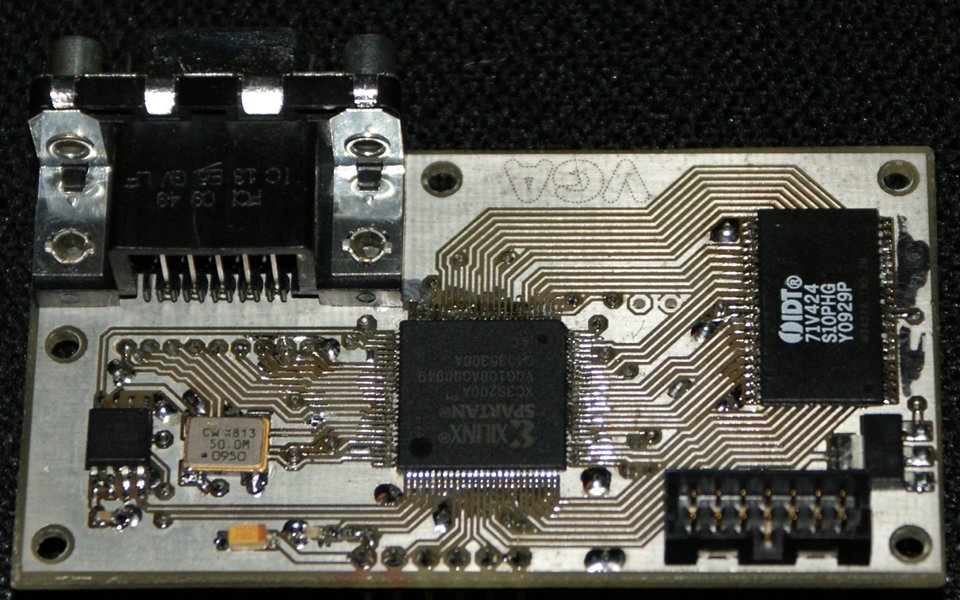

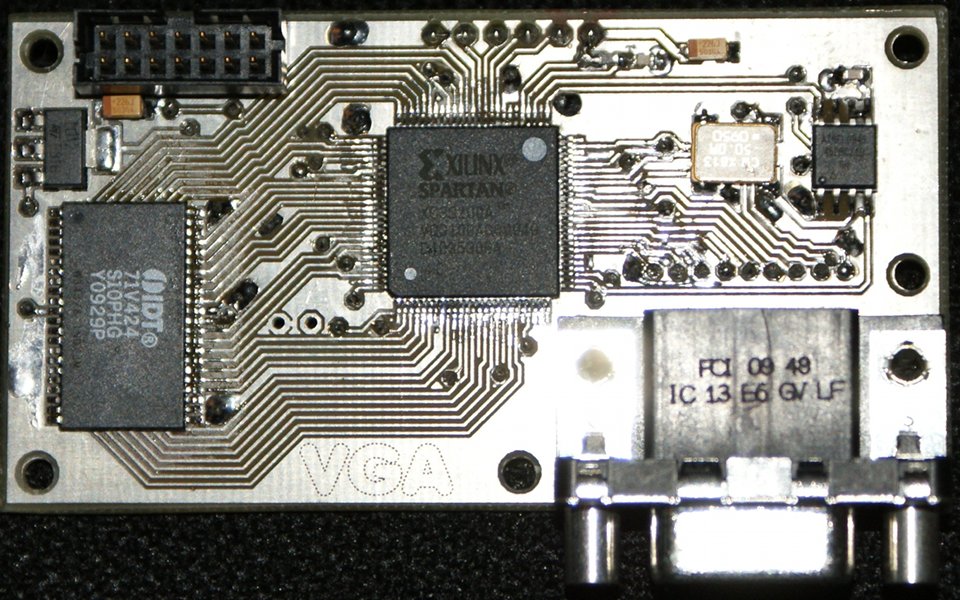

The prototype PCB was photo-etched in two stages on 10th March 2010, tinned the day after, and then populated two days after then.
![#](https://www.tribbeck.com/application/files/cache/thumbnails/6bd78b4982187034fc15d62d502c3add.jpg)
![#](https://www.tribbeck.com/application/files/cache/thumbnails/014438036c7d07a5aef485a95d8546fe.jpg)
![#](https://www.tribbeck.com/application/files/cache/thumbnails/2d429cc7ee9607d27a0efb85f14437dd.jpg)

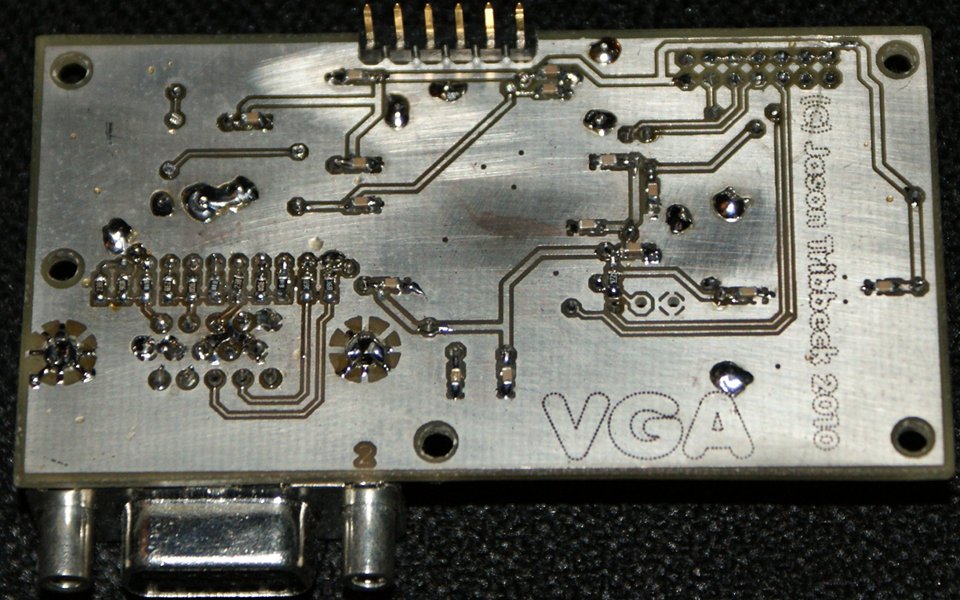

Like the XilMezzie, I've soldered wire between the two layers (I can't do PTH).
Again, like XilMezzie, this prototype worked first time, although I wasn't as surprised as the XilMezzie prototype working!
